Set Up An SFTP Server Backed By S3 On AWS

Fade In:

There are tutorials on the internet of setting up SFTP servers in Linux. There are tutorials out there for using S3 as a mounted file system. This tutorial sets out to combine these two concepts in addition to setting up a fault-tolerant, highly-available environment in which to deploy your resulting server ready for production use.

If you want to skip the extra reading, skip ahead to setting it all up!

WHAT IS SFTP

SFTP stands for Secure FTP (File Transfer Protocol) and is a protocol that runs on top of SSH typically accessed on port 22. Because it leverages SSH as the file transfer technology, users can be authenticated against these types of servers by using a username and a password and/or a public/private key pair. This type of authentication can be far more secure than a standard username and password combination found on most servers.

FEATURES OF AWS

Amazon Web Services (or “AWS”) offers a wide-variety of products in the Infrastructure, Platform, and Software -as-a-Service (IaaS, PaaS, and SaaS) spaces that aid tremendously in your team’s devops environment. One of the biggest features that AWS provides that we will be leveraging for the setup of the SFTP server is the inherent resiliency in AWS’ services, specifically that which is found in their storage service, S3, and Availablity Zones (“AZs”).

This article does not dive into the nitty-gritty of setting up an AWS account or the details of S3, but we will link you to appropriate resources as needed.

S3

Amazon’s Simple Storage Service (“S3“) is a block-storage system that can easily store petabytes of data at a very low cost — $0.02 per month per GB, at the time of this writing.

Data availability is of utmost importance when dealing with any kind of FTP server, and this is where S3 really shines. Any time an object is uploaded to S3, the service will automatically replicate the saved data to a minimum of three segregated data centers (Availability Zones) offering eleven 9’s of durability in the data you upload.  That means that there’s a 99.999999999% chance that your data won’t be lost or corrupted.

Let’s face it, FTP servers can get very cluttered depending on various use cases requiring them in the first place. Automatic data retention policies are another feature built-in to S3 that can be leveraged here without any additional cost. Files can be reclassified after reaching a user-defined age and moved to Amazon’s tape storage equivalent bringing the data storage cost down to $0.004 per month per GB, at the time of this writing.  Additionally, files can be set for automatic deletion after reaching a different user-defined age beyond the previously mentioned tape-backup age.

There are many other features offered by S3 that won’t be covered in this article. But, depending on your particular use case, you may be interested to know that file uploads can trigger events (i.e. run custom code against the newly uploaded file, or put a message on a queue for further processing), and data analyzation and reporting can happen directly against the files from their upload location in S3.

AWS’ infrastructure is comprised of regions that are further divided into Availability Zones (“AZs”). For conceptual understanding, each AZ basically boils down to a physical data center where all the servers live. And, the AZs within a region are connected to each other with a private fiber-optic network to minimize latency between the physical locations.

The resiliency of each region in AWS comes from how Amazon selects the physical location of the AZs. Their locations are diversified as much as possible in terms of flood plains each one exists in and the power grid they’re attached to minimizing single points of failure within a region.

High-Availability architecture at AWS suggests that your servers be spread across multiple AZs with a managed elastic load balancer directing traffic to healthy AZs. If some sort of situation or natural disaster arises that brings an AZ down, the resiliency of the region lives on, and the load balancer will shift traffic to the remaining healthy AZs.

TL;DR – Set Up the SFTP Server!

Enough with the AWS sales pitch, let’s get an SFTP server up and running. Strap yourselves in and prepare to launch!

Some code samples will be provided throughout this article. You can find the entire solution including more advanced command line and AWS CloudFormation templates on our GitHub page: https://github.com/sketchdev/aws-sftp.

CREATE A SAFE PLACE FOR YOUR UPLOADS

One of the main features of this SFTP server is that it will store all uploaded content to AWS’ S3 service. Let’s create the bucket for the files to be saved to.

1. Create a bucket in S3 and call it <yourcompany>-sftp


   AWS CLI:
   aws s3 mb s3://<yourcompany>-sftp

That’s it! Easy-peasy!

If you’re interested in enhanced disaster recovery options (i.e. incremental backups or multi-regional storage support) or business-specific data retention policies (i.e. your company requires data replication across data centers 500+ miles apart), see our tutorial on setting up cross-regional data replication.

GET A SERVER

An SFTP server requires, well, a server! Follow the official AWS documentation for instructions to launch a new EC2 instance. While getting that EC2 instance running, use some of the settings mentioned below that will need to be in place for our SFTP server to work properly. This article uses Amazon’s base Ubuntu image, but other linux flavors should be fairly compatible with these instructions.

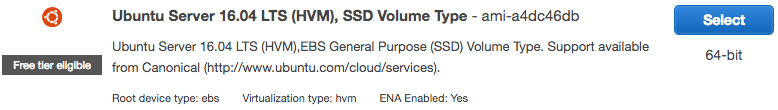

1. When selecting the image to launch your server from, we strongly suggest using Ubuntu for the rest of this article’s instructions to fit. You’re welcome to use another flavor of linux, but you may need to slightly alter this article’s commands as you run them.

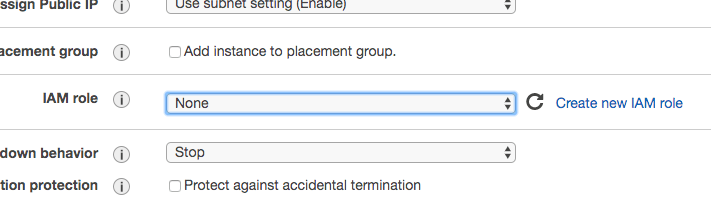

2. When configuring the instance details in the EC2 Launch Wizard, you’ll want to create a new IAM role that gives your server appropriate permissions to the S3 FTP bucket.
   1. Click Create new IAM Role (this will open a new tab for you)

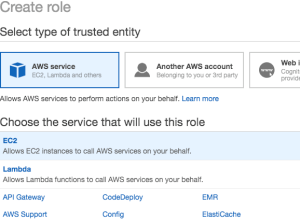

   2. Trusted Identity = AWS Service and Service that will use the role = EC2

   3. Proceed to Permissions
   4. Proceed to Review
   5. Give the Role a name
   6. Click Create Role
      You should receive confirmation that the role was successfully created and be back on the roles list page at this point
   7. Find and open the role you just created from the list of roles
   8. Click on “Add inline policy” near the bottom-right

      1. 1. Click the JSON tab to manually create your policy using the following snippet
            *be sure to change “<yourcompany>” to your company…more specifically, make sure that chunk matches the name of the bucket you created in the S3 step above:

            {
              "Version" : "2012-10-17",
              "Statement" : [
                {
                  "Effect" : "Allow",
                  "Action" : [
                    "s3:Get*",
                    "s3:List*",
                    "s3:DeleteObject",
                    "s3:PutObject",
                    "s3:PutObjectTagging",
                    "s3:PutObjectVersionTagging"
                  ],
                  "Resource" : [
                    "arn:aws:s3:::<yourcompany>-ftp*"
                  ]
                }
              ]
            }

         2. Click Review Policy
         3. Give it a name
         4. Click Create
         5. Close this IAM tab that AWS opened
   9. Check this IAM role dropdown for the role you just finished creating. If it does not appear in there, click the refresh icon to the right of the dropdown and check again

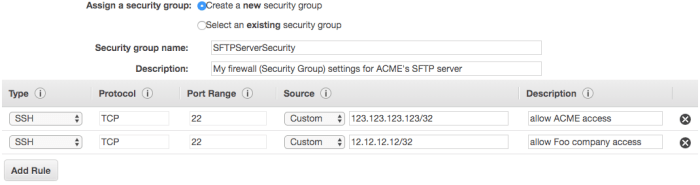

3. Configure your Security Group
   1. Leave this on the default “Create a new security group” option
   2. Give your new group a more valuable name and description
   3. Since SFTP runs over SSH, leaving the default SSH option of port 22 in there is sufficient
      1. For enhanced security, you can whitelist specific IP addresses in the Source column here of known clients instead of leaving this open to the whole world (0.0.0.0/0). If you do change this, make sure your IP (as seen by the outside world) is allowed access, or you may not be able to proceed with this exercise
      2. To ensure you have access, choose the “My IP” option in the dropdown under “Source”


Whew, that was a lot more effort than getting that S3 bucket set up. But, in just a few minutes, your server will have launched and will be ready for a little more configuring.

CONNECT TO YOUR SERVER

The concepts of connecting to your new server via PuTTY or SSH are beyond the scope of this article. Refer to the official AWS documentation for instructions on that if you are unfamiliar.

MOUNT S3

S3 is a block-storage system and isn’t intended to be mounted as attached storage out of the box. But, thanks to the open source community, s3fuse is here to save the day! We just need to get it installed on our server.

INSTALL S3FUSE

From your initial connection to the server:

1. Update and install missing packages
   1. sudo apt-get -y update
   2. sudo apt-get -y install awscli
   3. sudo apt-get -y install build-essential libcurl4-openssl-dev libxml2-dev mime-support
   4. sudo apt-get -y install automake autotools-dev g++ git libcurl4-gnutls-dev libfuse-dev libssl-dev libxml2-dev make pkg-config
2. Pull s3fuse code down from Github
   1. cd /usr/src/
   2. sudo git clone https://github.com/s3fs-fuse/s3fs-fuse.git
   3. cd s3fs-fuse
   4. sudo ./autogen.sh
   5. sudo ./configure
   6. sudo make
   7. sudo make install

TEST A MOUNTED S3 CONNECTION

Okay, time to hold your breath, cross your fingers, and pray that all this stuff works. Nah, of course it works!  I’ve been through this numerous times and have a slightly altered version of this setup running in production (see our GitHub page for a fuller-implemented setup of the SFTP server). It’s still worth a test right now to make sure your setup so far is in working condition.

Let’s quickly set up a mount configuration in fstab to see what happens. The syntax of the fstab mount for s3fuse in Ubuntu (as of 16.04, at least) is:

s3fs bucketname:/folderpath /mnt/ftp -o endpoint=region -o iam_role

Execute Test

To test this out, run the following commands:

1. aws s3api put-object --bucket <yourcompany>-ftp --key ftptest/
2. sudo -i
3. mkdir -p /mnt/ftp
4. cat <<EOT >> /etc/fstab
5. <yourcompany>-ftp:/ftptest /mnt/ftp fuse.s3fs _netdev,allow_other,endpoint=us-east-1,iam_role=auto,uid=1000,gid=65534 0 0
6. EOT
7. mount -a
8. echo some testing text > /mnt/ftp/testfile.txt
9. aws s3 ls s3://<yourcompany>-ftp/ftptest/

Verify and Troubleshoot

If all went well, you should see testfile.txt in your S3 bucket (from running that last command).  If not, run mount | grep ftp. If you don’t see s3fs on /mnt/ftp type fuse.s3fs, the mount didn’t happen successfully. Retrace your steps and ensure you followed all of the above instructions in this entire article.

Common issues include:

• Not having the IAM policy set up correctly for your bucket
• Not having the IAM role actually attached to the EC2 instance (FTP server)
• Having a different user id on your linux system than what these instructions specified
  • Without getting into too much detail about user and group ids, the command on line 5 above specifies uid=1000,gid=65534, which assumed a couple of things before executing it. Namely, that you’re running the default AWS Ubuntu image. If you aren’t, you may need to alter those ids just for this test. Later on, we’ll work on a script for managing your SFTP users, and that script handles these ids dynamically and won’t be an issue going forward.

Cleanup

We made a little mess of our server for this test, so let’s clean that up before proceeding.

1. Remove the test text file from S3
   rm /mnt/ftp/*
2. Unmount this test S3 folder
   umount /mnt/ftp
3. Delete the test ftp mount folder
   rm -Rf /mnt/ftp/
4. Remove the test fstab entry (this command removes the last line of the file)
   sed -i '$ d' /etc/fstab
5. Exit interactive sudo
   exit

SET UP SFTP

If you performed the above steps to test mounting the file system to S3, then you’re already logged on to your server. And, if you’re logged on to your server, that means SSH is already installed and running. And, again, if SSH is installed, so is SFTP; we just have to turn it on!

CREATE USER GROUP

First off, we need to create a group whose users we will allow SFTP access for.  That’s easily done:

sudo groupadd sftpusers

CONFIGURE SFTP SETTINGS

SFTP is probably already running if you used the default AWS Ubuntu image, but it’s not using it in a manner in which we’re after. Let’s change some things around a bit.

1. Disable the current implementation
   sed -i -e 's:Subsystem sftp /usr/lib/openssh/sftp-server:#Subsystem sftp /usr/lib/openssh/sftp-server:g' /etc/ssh/sshd_config
2. Enable a different implementation and configure its settings


   cat <<EOT >> /etc/ssh/sshd_config
     #enable sftp
     Subsystem sftp internal-sftp

     Match Group sftpusers
        ChrootDirectory %h #set the home directory
        ForceCommand internal-sftp
        X11Forwarding no
        AllowTCPForwarding no
        PasswordAuthentication yes

   EOT

3. Restart the SSH service
   service ssh restart

USER SETUP

Now that we have an SFTP server up and running, we need to set up users that can connect to it. From the section above, we allow users in the “sftpusers” group SFTP access. Any users created belonging to that group should suffice (with a couple of tweaks). Let’s work on building a script to automate the creation of user accounts.

CREATE A USER ACCOUNT

Create a user account and allows passwords that don’t conform to Ubuntu’s default username policy (Usernames should be lowercase. But if your business case requires upper-cased usernames, the force-badname option allows that). The disabled-password option is used here to prevent the password prompt and allow for a more fluid execution of these commands via the command line.

adduser --disabled-password --gecos "" --force-badname <username>

This next command adds the password to the user account, but it leverages piping the username and password to the command rather than being prompted for it. Again, a good way to execute these commands via a script.

echo "<username>:<password>" | chpasswd

CONFIGURE USER’S SFTP ENVIRONMENT

These commands add the user to the “sftpusers” group and makes sure the user isn’t allowed normal ssh login or shell access to the server — we only want them to be able to connect via SFTP kinda like a regular FTP server, but hella-secure.

usermod -g sftpusers <username>
usermod -s /bin/nologin <username>

Set up a chroot to the user’s home directory, thus preventing them from browsing any higher directories on the server than their own account. Once logged in via SFTP, as far as the client is aware, /home/<username> is / on the server, and there are no parent directories. This command chunk goes hand-in-hand with the ChrootDirectory command from above.

chown root:<username> /home/<username>
chmod 755 /home/<username>

LINK THE USER’S HOME DIRECTORY TO S3

Create the directory for the user that will be mounted to S3 via s3fuse. Also, make sure the user has access to their own directory by setting the permissions as needed.

mkdir /home/<username>/uploads
chown <username>:<username> /home/<username>/uploads
chmod 755 /home/<username>/uploads

Next, create the destination folder in S3. If this doesn’t exist when you try to mount the file system to this location, the mount fails.

aws s3api put-object --bucket <yourcompany>-ftp --key <username>/

SET UP THE MOUNT COMMAND

The fstab mount syntax requires the user’s ID and group ID. These commands are acquiring that information and assigning it to two variables to be used in the subsequent set of commands.

usruid=`id -u <username>`
usrgid=`id -g <username>`

This last group of commands appends the mount command for this user to the end of /etc/fstab. Make sure that 2nd line does not have any spacing at the front of it; fstab is less than happy when the mount commands begin with any whitespace. You can see that the user and group IDs obtained just prior are used near the end of that mount command.

cat <<EOT >> /etc/fstab
<yourcompany>-ftp:/<username> /home/<username>/uploads fuse.s3fs _netdev,allow_other,endpoint=us-east-1,iam_role=auto,uid=$usruid,gid=$usrgid 0 0
EOT

OPTIONAL STUFF

If you want your SFTP user account to be able to authenticate with a public/private key pair, you can configure this next bit to allow that.

mkdir -p /home/<username>/.ssh
echo <pre-generated-public-ssh-key> > /home/<username>/.ssh/authorized_keys
chmod 600 /home/$csu_user/.ssh/authorized_keys
chown <username>:<username> -R /home/<username>/.ssh

This code sets up the user’s local .ssh folder. When they log on to the server, they can now use their private ssh key as authentication to their account instead of using a password.

FULL SCRIPT

Below is a full implementation of the create user script. It goes a bit beyond what we covered in this article. For instance, it reads users in from a file to create them, sets up super users that have access to other users’ FTP folders, and allows for overriding (on a user-by-user basis) of the bucket that gets mounted to.

#!/bin/bash
# usage: create_sftp_user <username> <password> <ssh_key> <super_flag> <bucket> <region> <override>
function create_sftp_user() {
    csu_user=$1
    csu_password=$2
    csu_ssh_key=$3
    csu_super_flag=$4
    csu_bucket=$5
    csu_region=$6
    csu_override=$7

    # create user
    adduser --disabled-password --gecos "" --force-badname $csu_user

    # set user password
    if [ "$csu_password" != "" ]; then
      echo "$csu_user:$csu_password" | chpasswd
    fi

    # prevent ssh login & assign SFTP group
    usermod -g sftpusers $csu_user
    usermod -s /bin/nologin $csu_user

    # chroot user (so they only see their directory after login)
    chown root:$csu_user /home/$csu_user
    chmod 755 /home/$csu_user

    # set up upload directory tied to s3
    mkdir /home/$csu_user/uploads
    chown $csu_user:$csu_user /home/$csu_user/uploads
    chmod 755 /home/$csu_user/uploads
    # create matching folder in s3
    aws s3api put-object --bucket $csu_bucket --key $userkey/

    # get user ids
    usruid=`id -u $csu_user`
    usrgid=`id -g $csu_user`

    # link upload dir to s3
    cat <<EOT >> /etc/fstab
$csu_bucket:/$userkey /home/$csu_user/uploads fuse.s3fs _netdev,allow_other,endpoint=$csu_region,iam_role=auto,uid=$usruid,gid=$usrgid 0 0
EOT

    # set ssh key if supplied
    if [ "$csu_ssh_key" != "" ]; then
      mkdir -p /home/$csu_user/.ssh
      echo $csu_ssh_key > /home/$csu_user/.ssh/authorized_keys
      chmod 600 /home/$csu_user/.ssh/authorized_keys
      chown $csu_user:$csu_user -R /home/$csu_user/.ssh
    fi

    # change s3 location if override flag set
    if [ $override -ne 0 ]; then
      userkey=`echo $csu_user | sed -e 's/dev//'`
    else
      userkey=$csu_user
    fi
}

# usage: process_users <userfile> <bucket> <region>
function process_users() {
  while IFS=, read username pw ssh_key super override_bucket
  do
    if [ "$override_bucket" == "" ]; then
      bucket=$2
      override=0
    else
      bucket=$override_bucket
      override=1
    fi
    create_sftp_user $username $pw "$ssh_key" $super $bucket $3 $override
  done < $1

  mount -a
}

SERVER HOST KEYS – (OPTIONAL)

One quirk about using SFTP — which, again, runs on top of SSH — is that when you connect to the server, there’s some client-host secure handshaking going on. In this handshake, not only does the client have to authenticate with the server, BUT, the server also authenticates with the client! This is one of the great security benefits of SFTP over regular FTP/S.

Alas, this poses a problem in a cloudy environment where servers come and go. If our SFTP server flips-out and crashes for an unknown reason, we will rely on AWS for launching a new and healthy one to take its place. That’s GREAT! We don’t need to worry ourselves about downtime or being called at 2:00am or troubleshooting and fixing the issue (see “Pets vs Cattle“). However, with a new server comes a new host fingerprint and public keys…things reconnecting clients may view as a hacked or man-in-the-middle server. We need a way to keep the host information consistent.

We’ll configure our server to copy a set of host keys from a secure, centralized location upon launch. This solves our issue of changed keys when the cloud spins up a new server instance for us. Since we’re leveraging S3 for resilient storage of our file uploads, let’s also use it for housing our host keys!

1. Create a bucket in S3 and call it <yourcompany>-keys


   AWS CLI:
   aws s3 mb s3://<yourcompany>-keys

2. Upload your server’s host keys to <yourcompany>-keys/ftp/


   AWS CLI:
   aws s3 cp /etc/ssh/ s3://<yourcompany>-keys/ftp/ --recursive --exclude * --include ssh_host*

3. Update your EC2 User Data start-up script to copy these keys upon launch


   cd /etc/sshaws s3 cp s3://<yourcompany>-keys/ftp/ . --recursive --exclude * --include ssh_host*
chmod 600 *_key
chown root:ssh_keys ssh_host_ed25519_key

We plan to post a separate article within the next month to cover more details about server host keys — the reason for them, how to get them, how to verify them, and other uses for them. Check back with us again soon to learn more about that.
